X-Ray for Fat Analysis TXR-FA Series | Libra Service

The Techik X-ray system analyses fat content and detects bones in fresh, frozen, bulk or packaged meat.

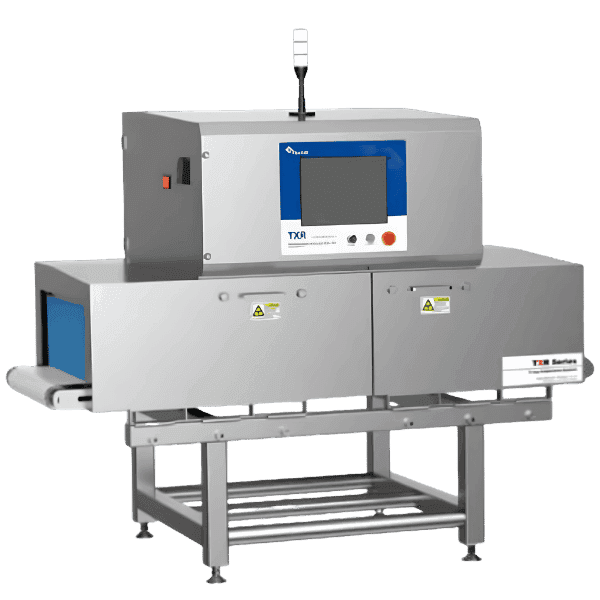

TECHIK X-RAY SYSTEM TXR-FA Series

Fat content analysis

The platform enables in-line analysis of the fat content of meat products.

Integrated bone detection

The same system simultaneously supports the detection of bone fragments.

Configurations up to 800 mm

Three available widths allow different formats and production capacities to be handled.

Protection up to IP69K

The machine is designed for meat applications and environments subject to intensive washdowns.

Typical applications

Meat cuts, loose minced meat, meat packed in cartons or trays, fresh and frozen products.

Technical specifications

TXR-4080FA

Model: TXR-4080FA
Inspection aperture, width: 400 mm
Inspection aperture, height: 160 mm
X-ray tube, max power: 100 kV / 350 W
Belt speed: 10–60 m/min
Max sensitivity, SUS: Ø 0,3 mm
Max sensitivity, SUS wire: Ø 0,2 × 2 mm
Max sensitivity, glass: Ø 0,8 mm
Max sensitivity, ceramic: Ø 0,8 mm
IP protection rating: IP67 · up to IP69K (optional)
Operating temperature: 0÷40 °C
"NG" product alarm: Audible, Visual, Belt Stop
Reject system, option: 32 air jets / multi-channel flap
Frame material: SUS304

TXR-6080FA

Model: TXR-6080FA
Inspection aperture, width: 600 mm
Inspection aperture, height: 300 mm
X-ray tube, max power: 140 kV / 500 W
Belt speed: 10–60 m/min
Max sensitivity, SUS: Ø 0,4 mm
Max sensitivity, SUS wire: Ø 0,3 × 2 mm
Max sensitivity, glass: Ø 1,0 mm
Max sensitivity, ceramic: Ø 1,0 mm
IP protection rating: IP67 · up to IP69K (optional)
Operating temperature: 0÷40 °C
"NG" product alarm: Audible, Visual, Belt Stop
Reject system, option: 48 air jets / multi-channel flap
Frame material: SUS304

TXR-8040FA

Model: TXR-8040FA
Inspection aperture, width: 800 mm
Inspection aperture, height: 400 mm
X-ray tube, max power: 140 kV / 500 W
Belt speed: 10–60 m/min
Max sensitivity, SUS: Ø 0,4 mm
Max sensitivity, SUS wire: Ø 0,3 × 2 mm
Max sensitivity, glass: Ø 1,0 mm
Max sensitivity, ceramic: Ø 1,0 mm
IP protection rating: IP67 · up to IP69K (optional)
Operating temperature: 0÷40 °C
"NG" product alarm: Audible, Visual, Belt Stop
Reject system, option: 72 air jets / multi-channel flap
Frame material: SUS304

Technical specifications — X-Ray for Fat Analysis TXR-FA Series
	TXR-4080FA	TXR-6080FA	TXR-8040FA
Model	TXR-4080FA	TXR-6080FA	TXR-8040FA
Inspection aperture, width	400 mm	600 mm	800 mm
Inspection aperture, height	160 mm	300 mm	400 mm
X-ray tube, max power	100 kV / 350 W	140 kV / 500 W	140 kV / 500 W
Belt speed	10–60 m/min	10–60 m/min	10–60 m/min
Max sensitivity, SUS	Ø 0,3 mm	Ø 0,4 mm	Ø 0,4 mm
Max sensitivity, SUS wire	Ø 0,2 × 2 mm	Ø 0,3 × 2 mm	Ø 0,3 × 2 mm
Max sensitivity, glass	Ø 0,8 mm	Ø 1,0 mm	Ø 1,0 mm
Max sensitivity, ceramic	Ø 0,8 mm	Ø 1,0 mm	Ø 1,0 mm
IP protection rating	IP67 · up to IP69K (optional)	IP67 · up to IP69K (optional)	IP67 · up to IP69K (optional)
Operating temperature	0÷40 °C	0÷40 °C	0÷40 °C
"NG" product alarm	Audible, Visual, Belt Stop	Audible, Visual, Belt Stop	Audible, Visual, Belt Stop
Reject system, option	32 air jets / multi-channel flap	48 air jets / multi-channel flap	72 air jets / multi-channel flap
Frame material	SUS304	SUS304	SUS304
